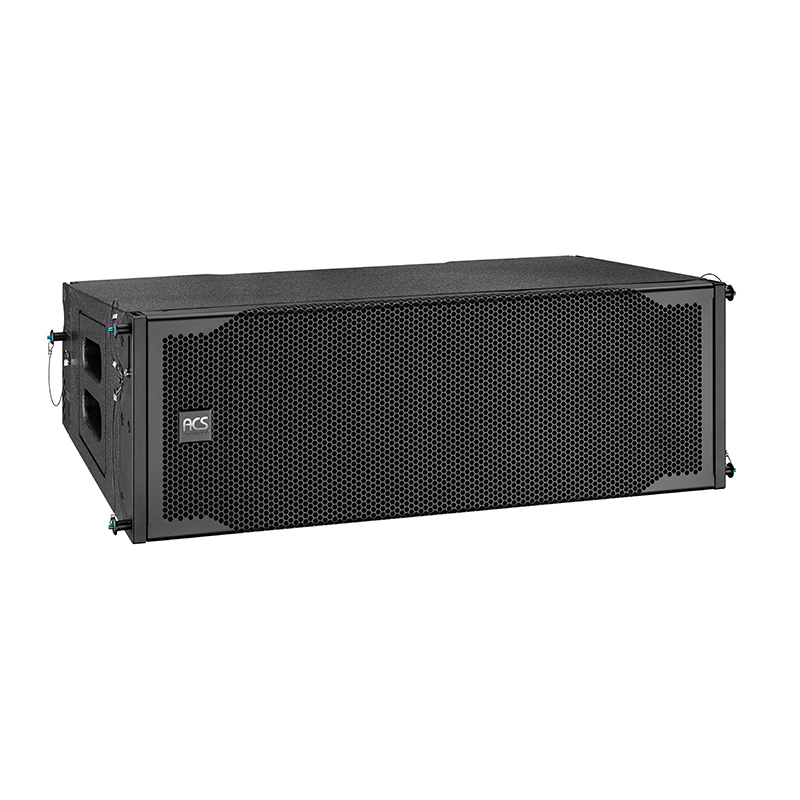

LA-2212

Dual 12 inch linear speaker

The LA2212 linear array has excellent frequency response, providing a flat response output in the range of 45-20KHZ. In combination with subwoofer, the low frequency lower limit can be extended to 40Hz. The entire system adopts two channels and three units, with an external frequency division design, two 12 inch mid bass speakers, and one 3 inch tweeter driver. Combined with customized horn, it can effectively control the directionality of high frequencies. Within a horizontal range of 120 degrees, a uniform high frequency response will be obtained. According to the needs of on-site sound reinforcement, it also meets the effective attenuation within the verticality range. Ensure that there is no interference between multiple speaker systems when working simultaneously, meeting the requirements of range amplification.

Product Characteristics

■ The LA2212 linear array has excellent frequency response, providing a flat response output in the range of 45-20KHZ. In combination with subwoofer, the low frequency lower limit can be extended to 40Hz. ■ The entire system adopts two channels and three units, with an external frequency division design, two 12 inch mid bass speakers, and one 3 inch tweeter driver. Combined with customized horn, it can effectively control the directionality of high frequencies. Within a horizontal range of 120 degrees, a uniform high frequency response will be obtained. According to the needs of on-site sound reinforcement, it also meets the effective attenuation within the verticality range. Ensure that there is no interference between multiple speaker systems when working simultaneously, meeting the requirements of range amplification. ■ Fine and smooth medium to high frequency, thick and powerful low frequency, suitable for various types of large and medium-sized occasions for sound reinforcement

Parameter

Dual 12 linear speaker parameters:
Treble: 3"×1φ pure aluminum flat wire polymer titanium membrane
Bass: 12"×2, high power in and out basin bass
Rated impedance: 18Ω
Frequency response: 55Hz~20kHz (±3dB) Rated power: 800W
Maximum power: 3200W
Maximum sound pressure level: 137dB Sensitivity: 102dB (1m/1W)
Directivity: 15ºV×100ºH Size (HxWxD): 349X1020X450(mm);
Weight: 55KG

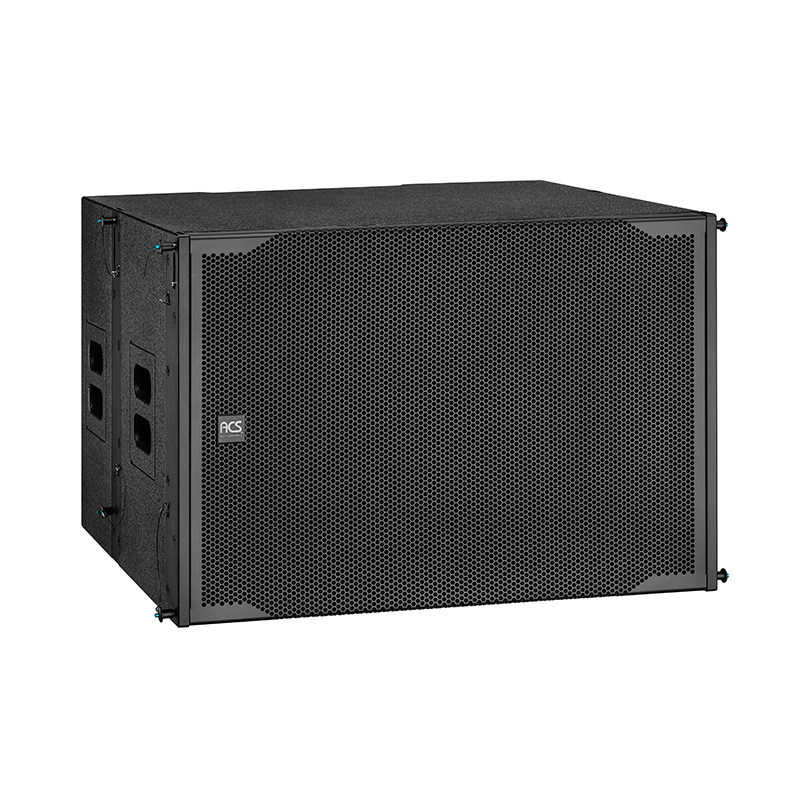

Double 18 subwoofer parameters:
18"×2 woofer, 220 magnetic 100 cores, aluminum tray,
Frequency response: 30Hz~400Hz,
Rated power: 1200W, peak power 4800W;
Sensitivity 102dB, impedance: 4Ω, maximum sound pressure 138dB,
Box structure: direct type;
Wiring type: NEUTRIK NL4MP×2 HF:┄ LF:1+1-

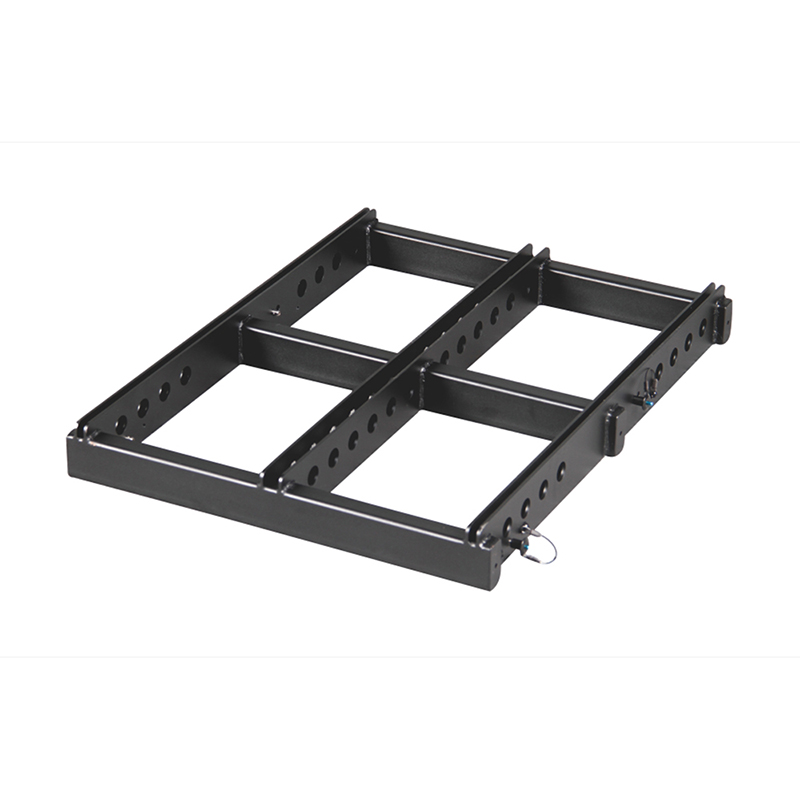

Hanging hardware: aluminum metal hanging parts
Box size(HxWxD):600X880X800(mm);
Weight: 79KG.
